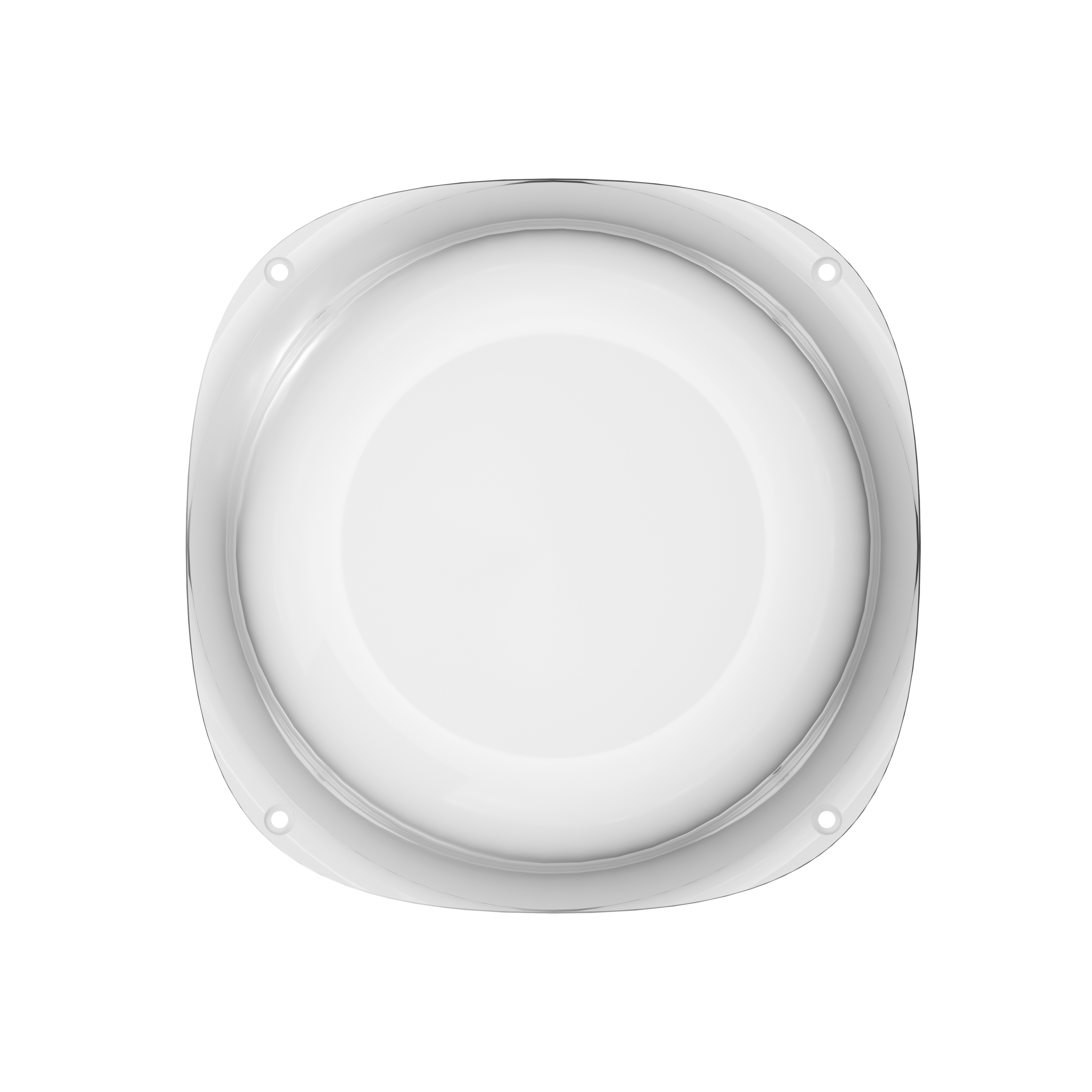

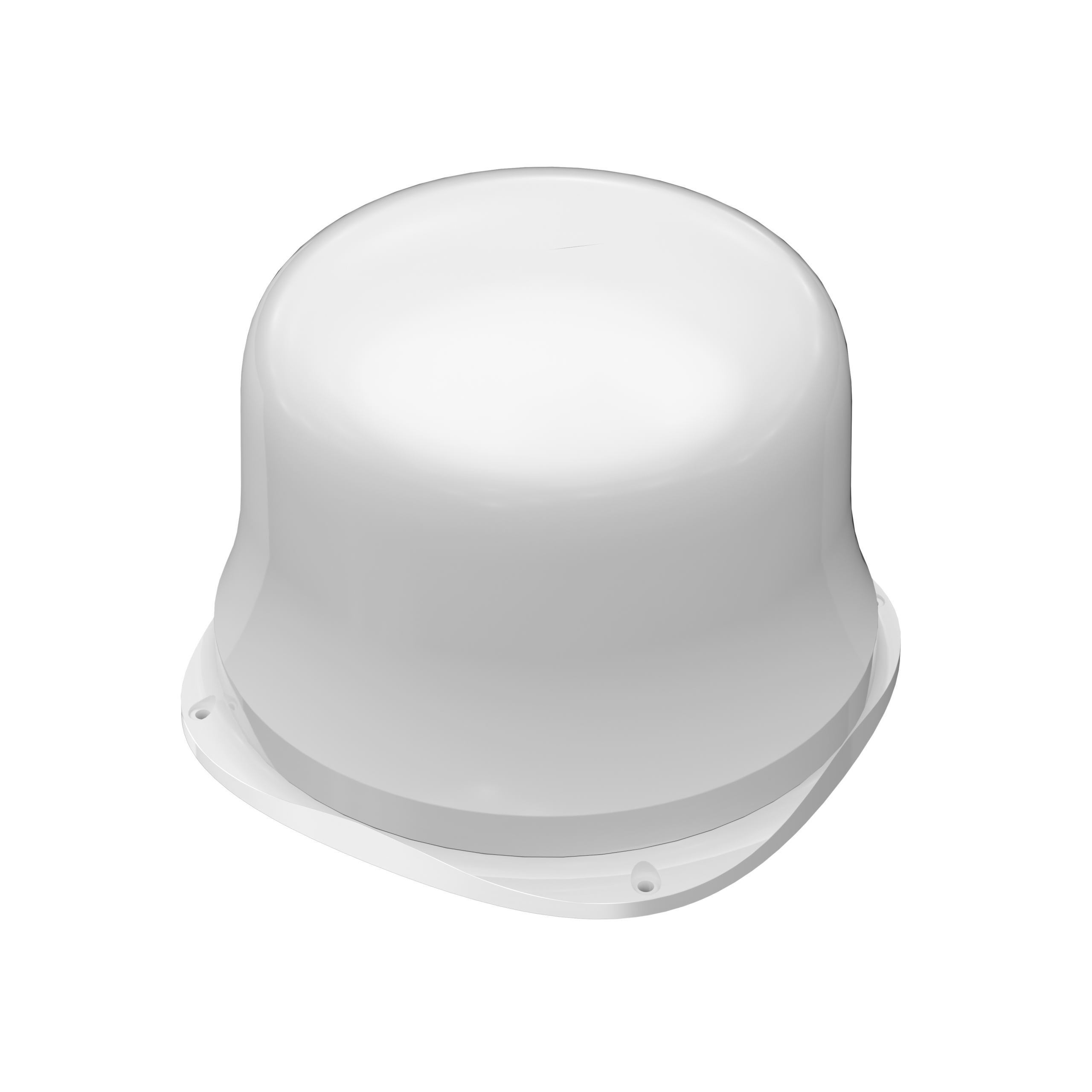

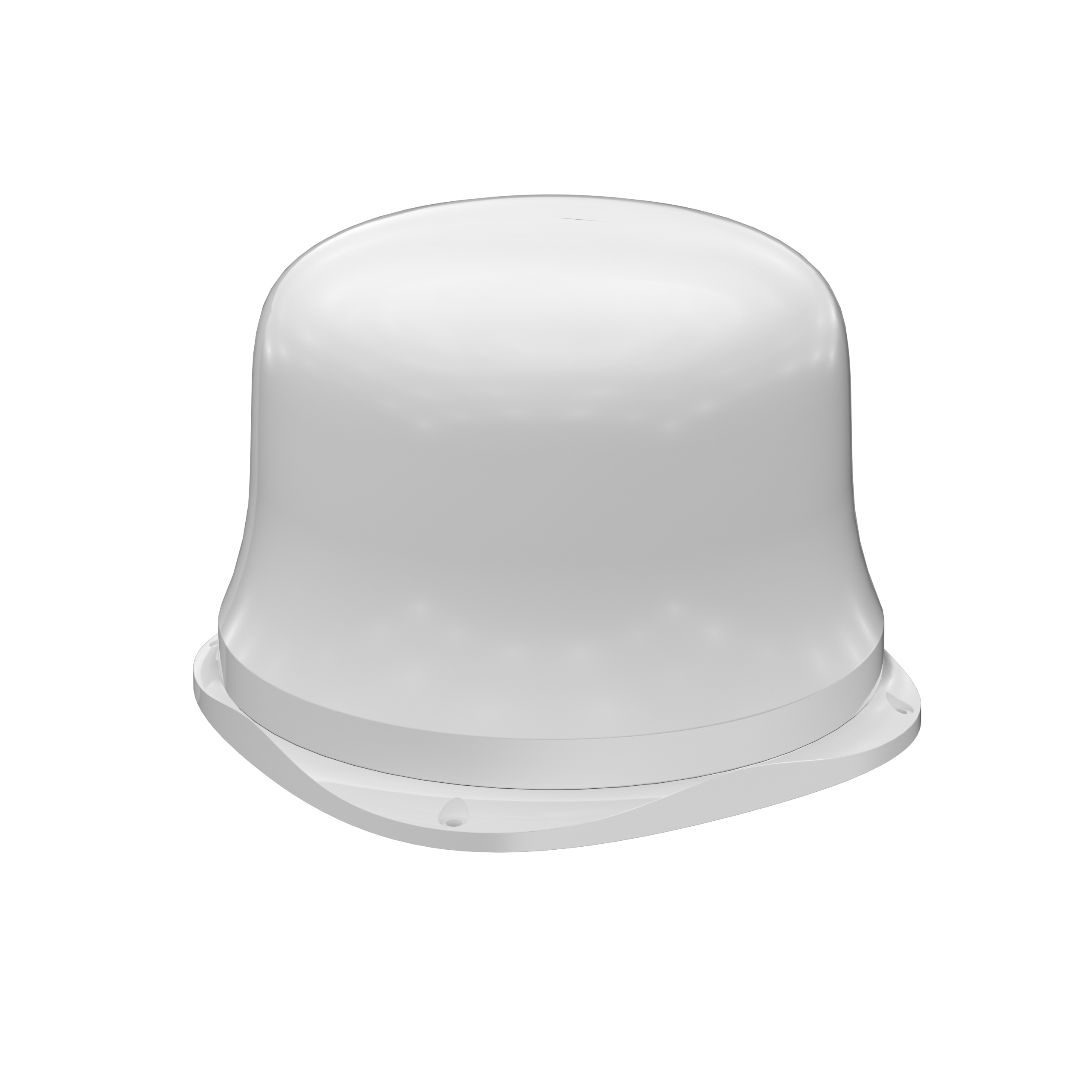

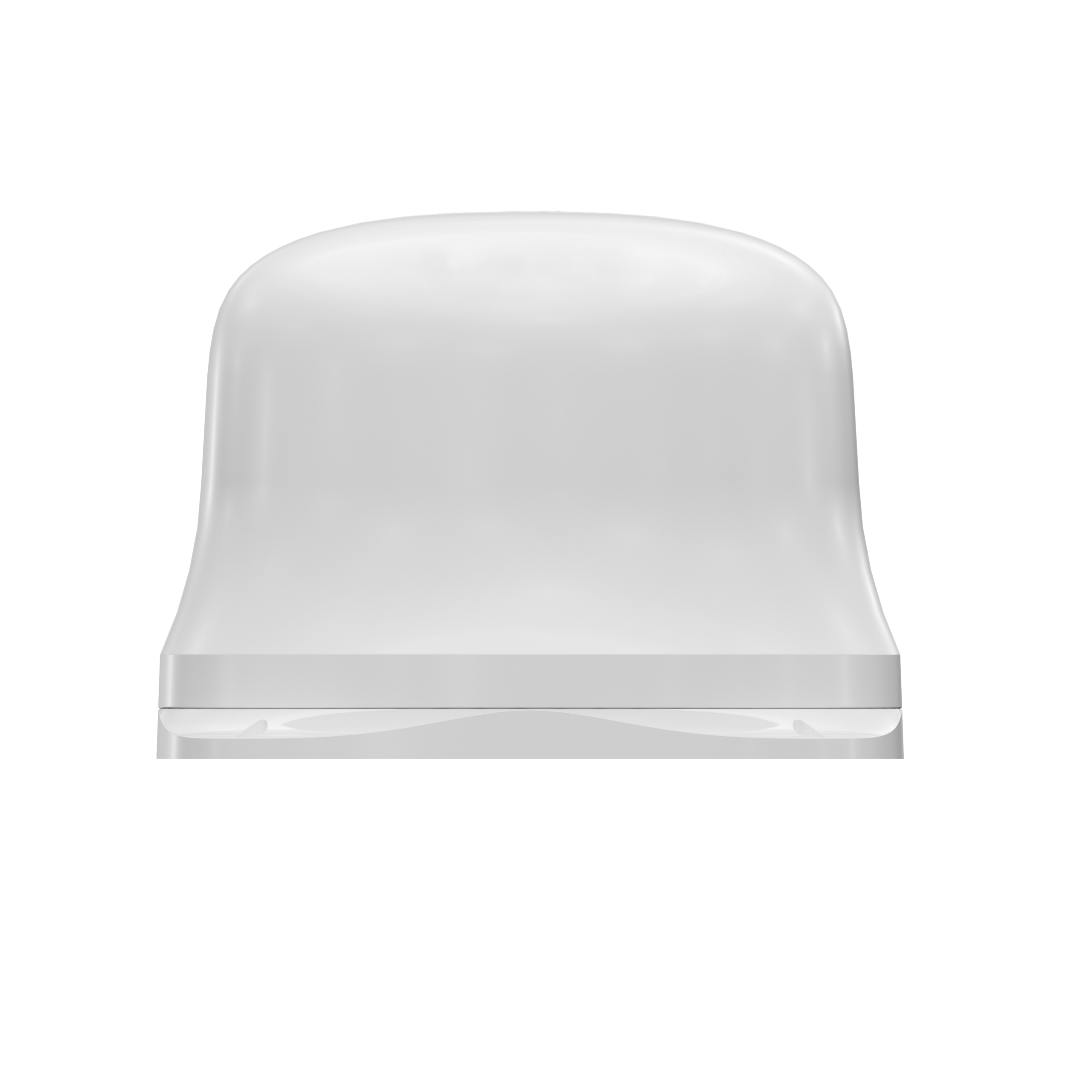

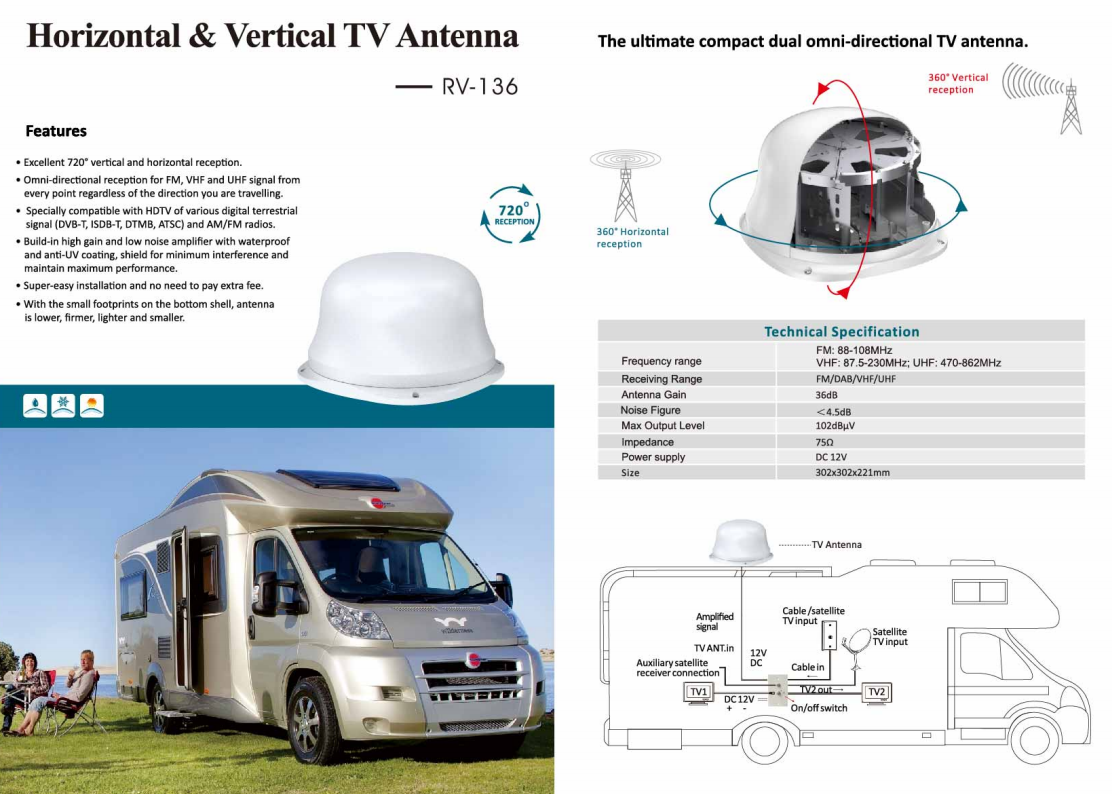

Hitech Digital Outdoor Antenna – 2 in 1 – RV -136 (WITH 5G FILTER) (IP67)

Product Specifications:

Frequency range:

FM: 88-108MHz

VHF: 87.5 – 230MHz

UHF: 470 – 694 MHz (With 5G filter)

Receiving range:

FM/DAB/VHF/UHF

Antenna Gain: 36Db

Noise figure: <4.5Db

Max output level:  102dBμV

IMPEDANCE: 75Ω

power supply: DC 12V

size：302*302*221mm

Weight: 2.85kg

material: ABS

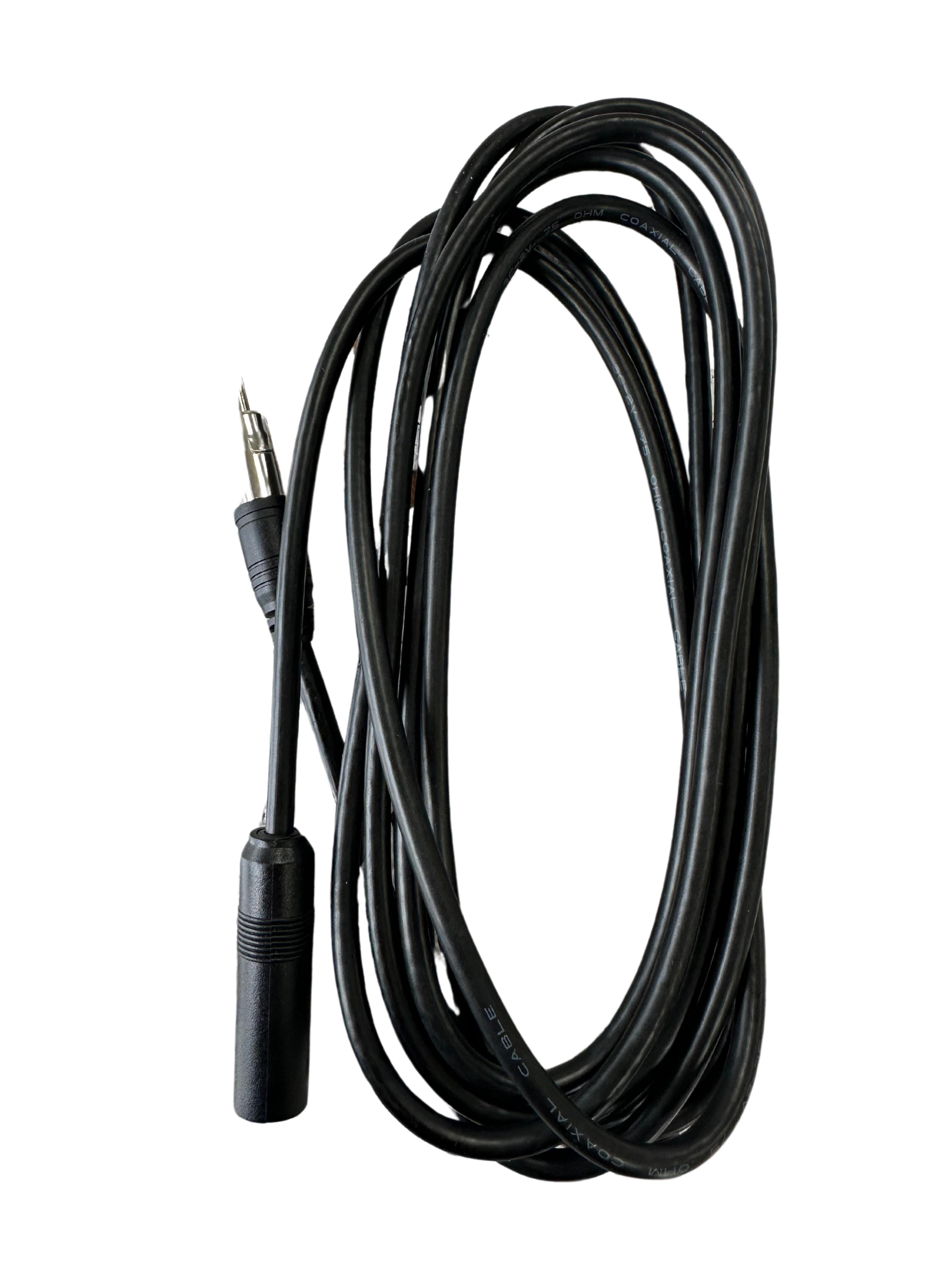

Radio Antenna Cable: 3m length

one of side is male connector, the other

side is female connector.

FDD5.5-250 connector/RC-002 connectors/screws: pre-insulated connector: FDD5.5-250

RC-002 connector: IEC male to F female 2 screws

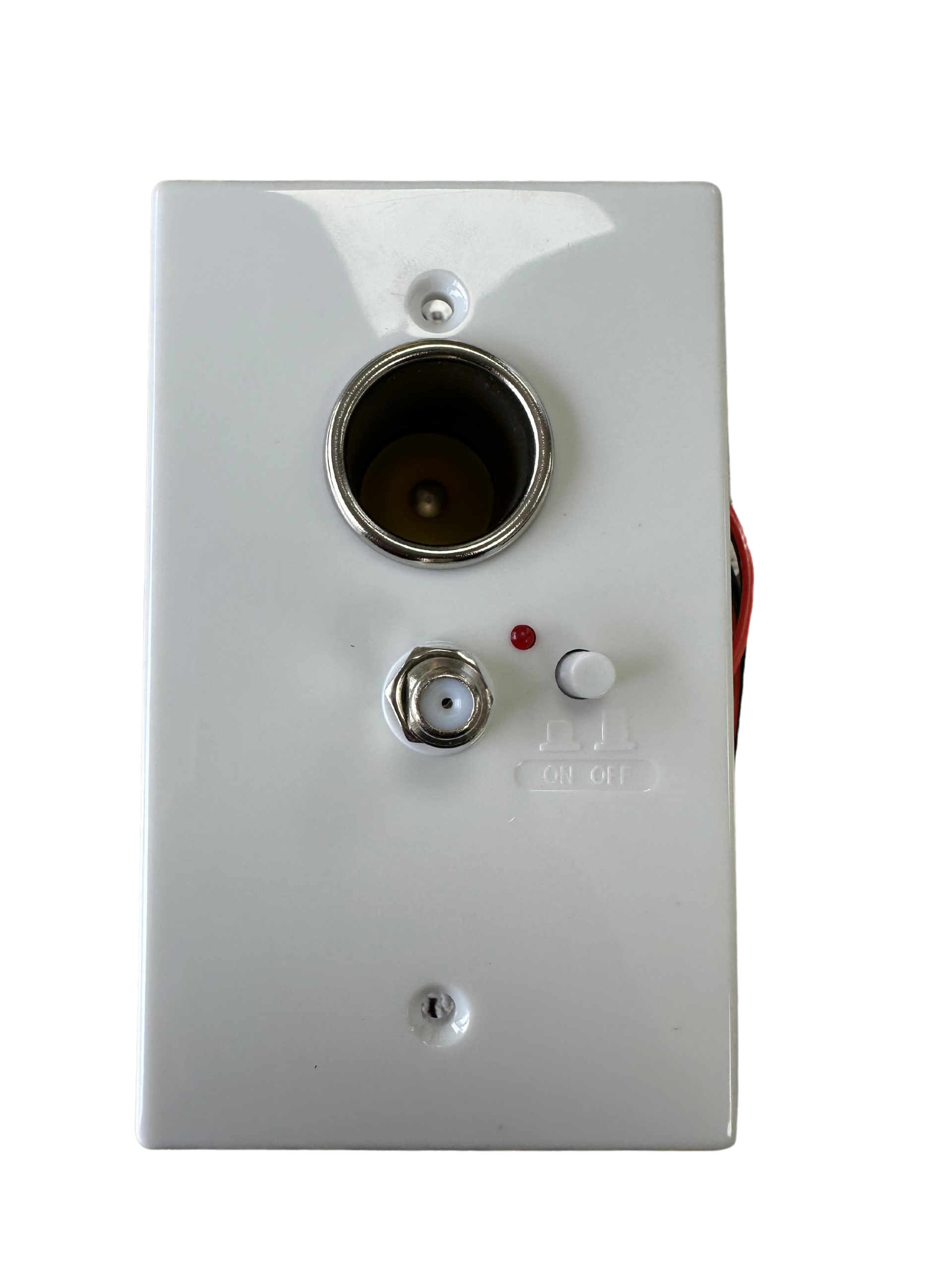

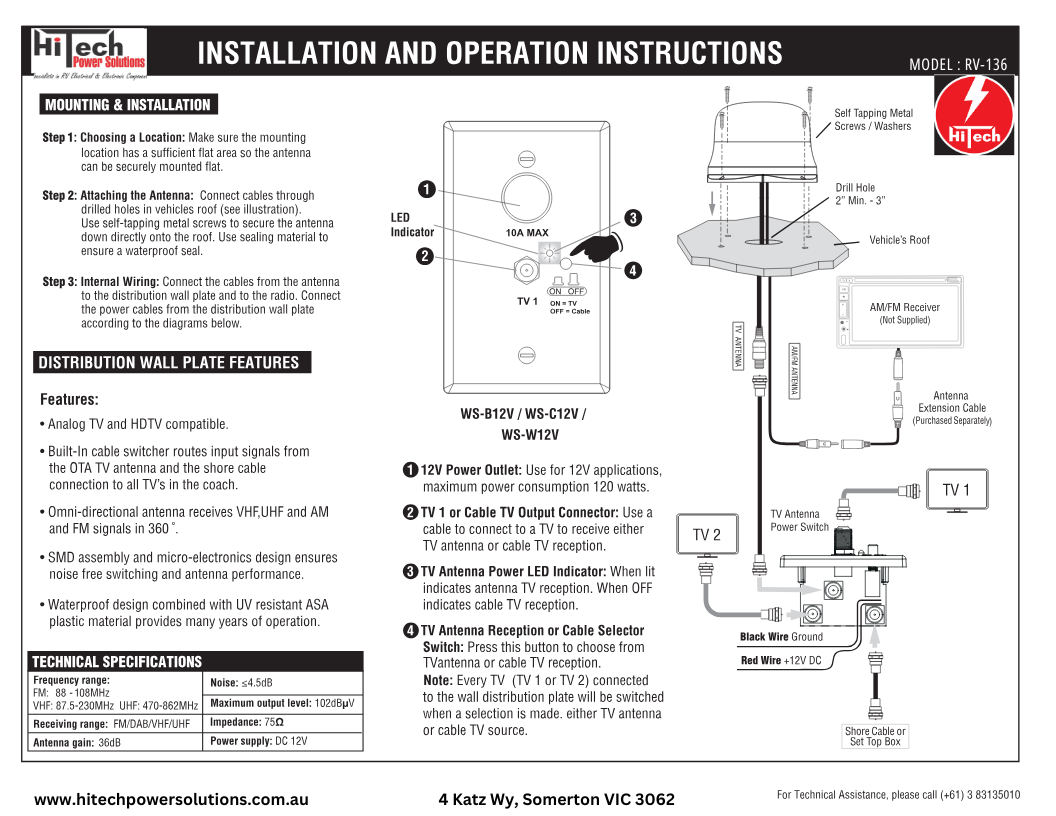

MP-005 WALL-MOUNTED CAR CHARGERPOWERSUPPlY plate with 2 TV

outputs. it can supply the DC power to the TV antenna via attached 12V DC input wire kits from the boat or vehicle, it is with one Terr, antenna input and one cable TV input, the two inputs are optional via the on/off switch (switch on for Terr, TV signal input, and switch off for cable TV signal input) with one auxiliary 12V car charger output.

1.5m Coaxial Cable: standards: RG-6

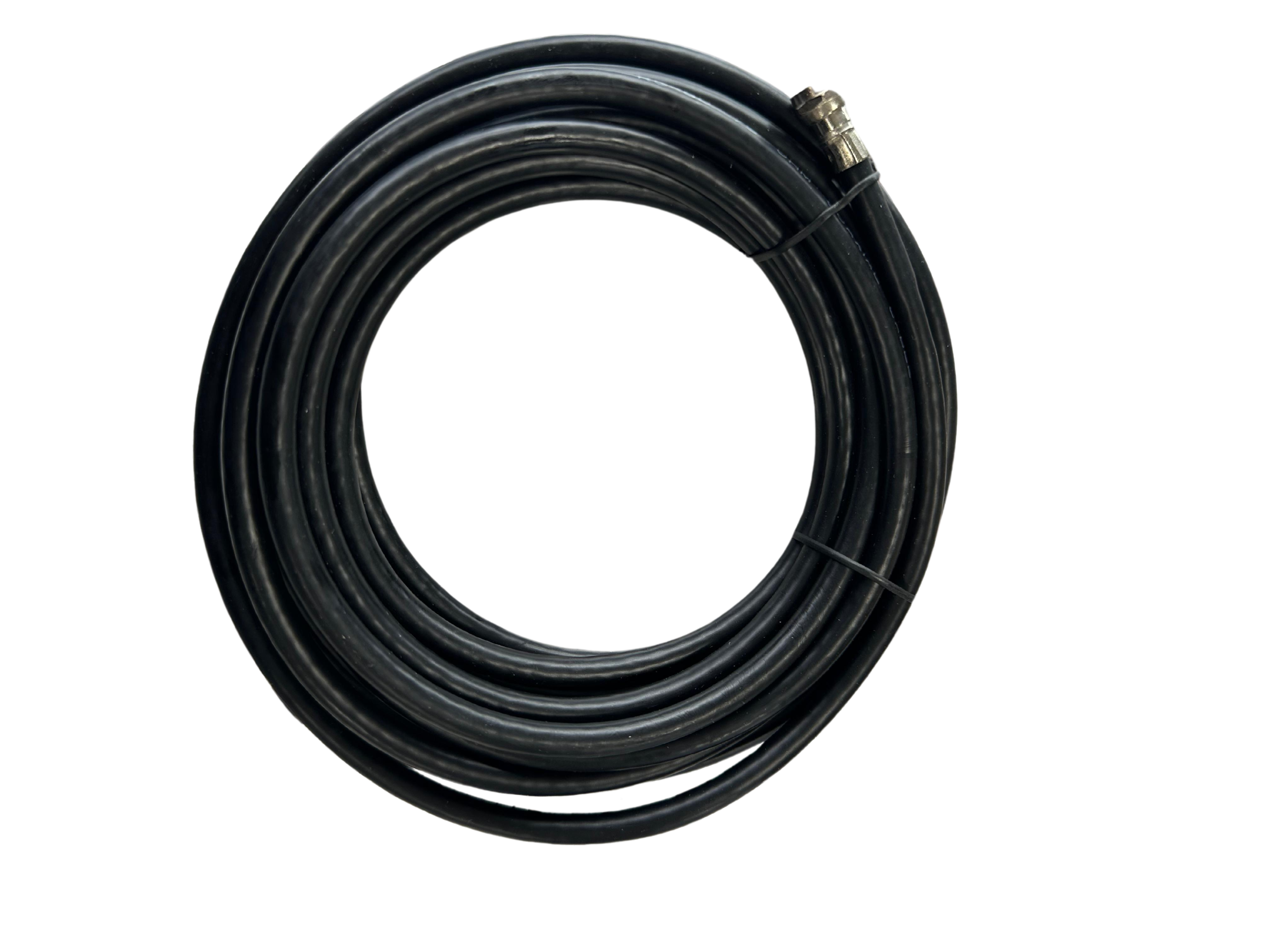

5m Coaxial Cable: standards: RG-6
